Power Generation
Challenges
Difficult Access
Personnel Safety Issues
Extreme Heat
Hazardous Gas Accumulation
The MXOne addresses all the most common challenges of the Power Generation industry. Difficult access to the fire itself and multiple potential layers of flammable material are met with extended range options and a variety of deployment methods to meet your specific scenario. When true volume is needed, the MXOne answers with 2490 GPM at 262 psi delivering effective water to 360 feet according to FM Global testing, through the use of the fully integrated turbine air system. This reach also empowers the safe management of fire scenarios where personnel placement in a safety zone is critical. The MXOne offers multiple spray modes including a water mist mode that creates a dense mist that is excellent as supercooling surrounding structures and protecting nearby assets in support of the direct suppression efforts. The water mist also encapsulates and traps hazardous gas when plastic or advanced materials are exposed to superheated temperatures, minimizing the environmental impact of the event.
Automated detection and deployment for safe and timely fire suppression.
Flexible deployment strategies and industry best performance allow the MXOne to be an essential part of any fire suppression system, especially when protecting critical equipment and structures in remote locations.
During a fire, water mist mode suppresses smoke spread, particulate dispersal and reduces vapor escape while effectively extinguishing deep seeded fires. . It also is excellent for pre-fire wetting and application of all wetting agents. The high-volume turbine fan can be used to clear smoke and enhance visibility after a fire.
Enhanced automatic deployment using heat, smoke and fire detection technologies.
Extended reach and remote operations capabilities allow your firefighters to effectively engage the objective while remaining at a safe distance.
Automated preprogrammed operational sequences can be repeated indefinitely to allow effective autonomous operations.
The MXOne has the capability to utilize fresh and/or saltwater as a primary extinguishing medium with the ability to deliver any water additives including foam, encapsulants and wetting agents.

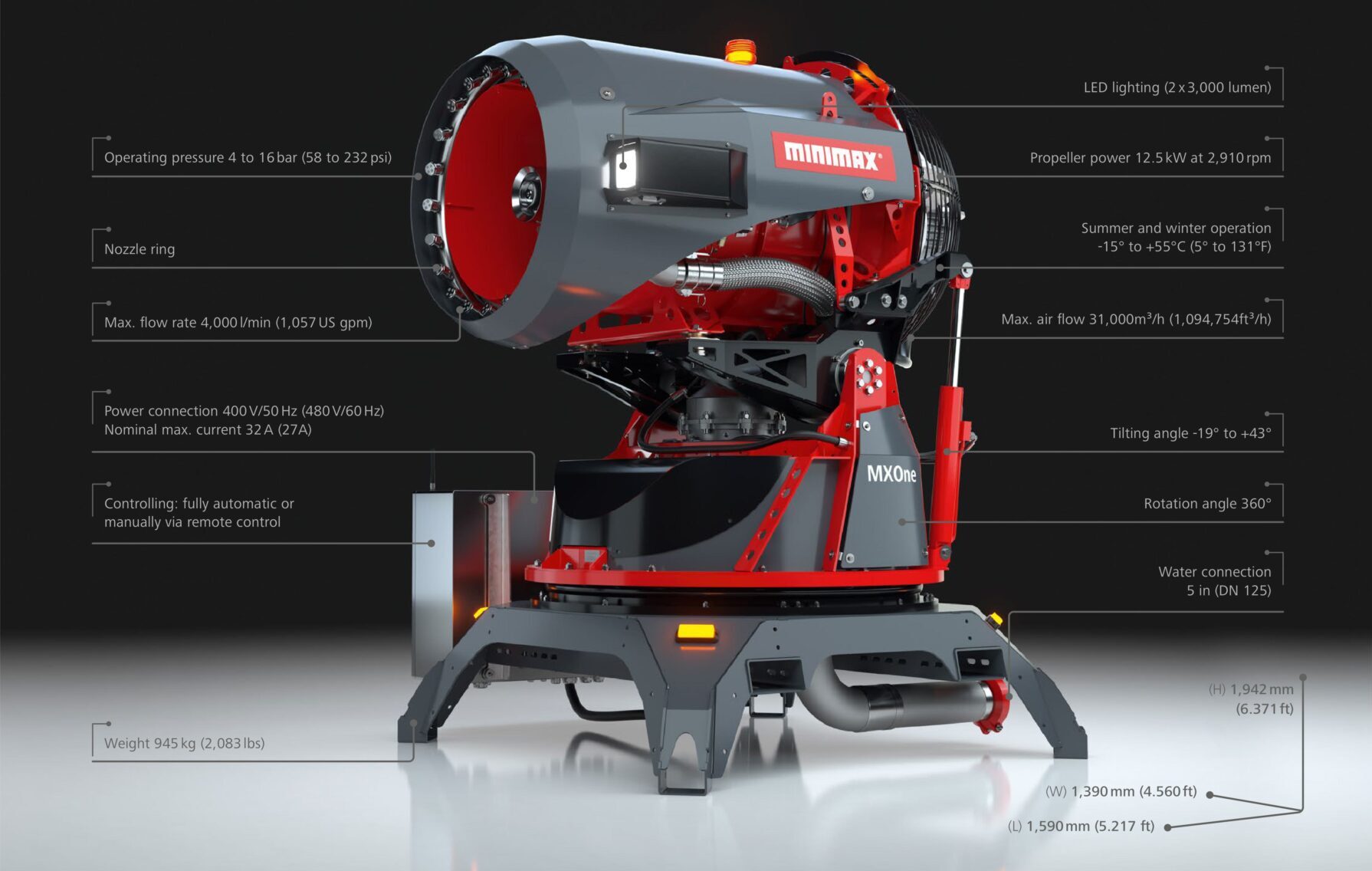

Specifications
Next-generation fire protection

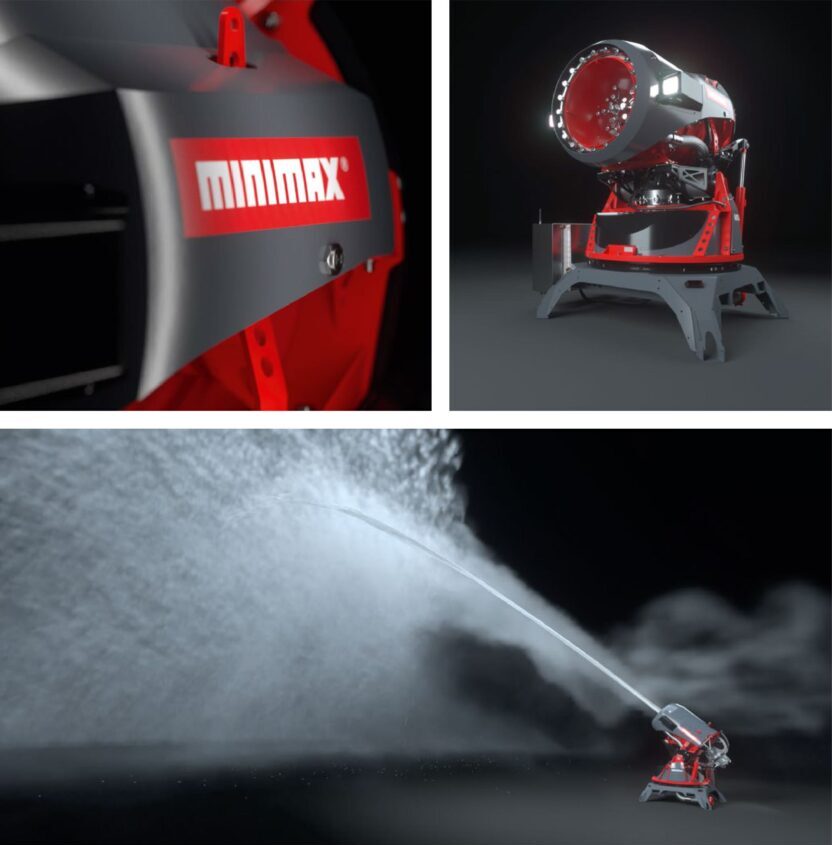

The Minimax MXOne high-performance extinguishing turbine represents a new generation of fire fighting. Through an electrically adjustable jet pipe, the turbine achieves wide coverage, even with the addition of foam concentrate. The integrated position sensors provide the intelligent control system with continuous feedback on the setting mode and alignment of the extinguishing turbine.
The water mist it generates absorbs large amounts of energy in the event of a fire, providing effective cooling and, due to its three-dimensional operation, can also reach hidden sources of fire. It also binds smoke gases, pollutants, and odors and can quickly take effect over large areas. Unlike classic monitors that use a focused jet, the turbine’s gentle application of water prevents burning material from being dispersed and potentially causing additional fire spread. MXOne is unprecedented in its ability to protect urban/ wildlife interface areas, prioritizing both resedential areas and natural habitats.
With MXOne, a wide range of fire scenarios can be safelymastered. The flexible applicability of different extinguishing media plays a key role. MXOne can be operated with townwater, salt water, with and without foam concentrate admixtures (also fluorine-free).
Due to its advantageous operating parameters, the extinguishing turbine is easy to integrate into existing systems and is suitable for use in areas with temperatures ranging from -15 to +55 °C.
MXOne is – depending on the configuration – either fully automatically or remotely and manually aligned to a hot spot. Thanks to intelligent control, even two or more neighboring areas can be alternately supplied with extinguishing water using a single turbine in automatic mode. This allows several fires to be fought in parallel or nearby facilities threatened by fire to be cooled in a targeted manner.
Due to a highly hydraulically balanced and optimized design, the MXOne impresses with relatively large coverage at already low water pressure, thereby requiring less extinguishing water compared to conventional monitors or similar machines.
Variants:
- Stationary on the ground
- Stationary on tower (high pile)

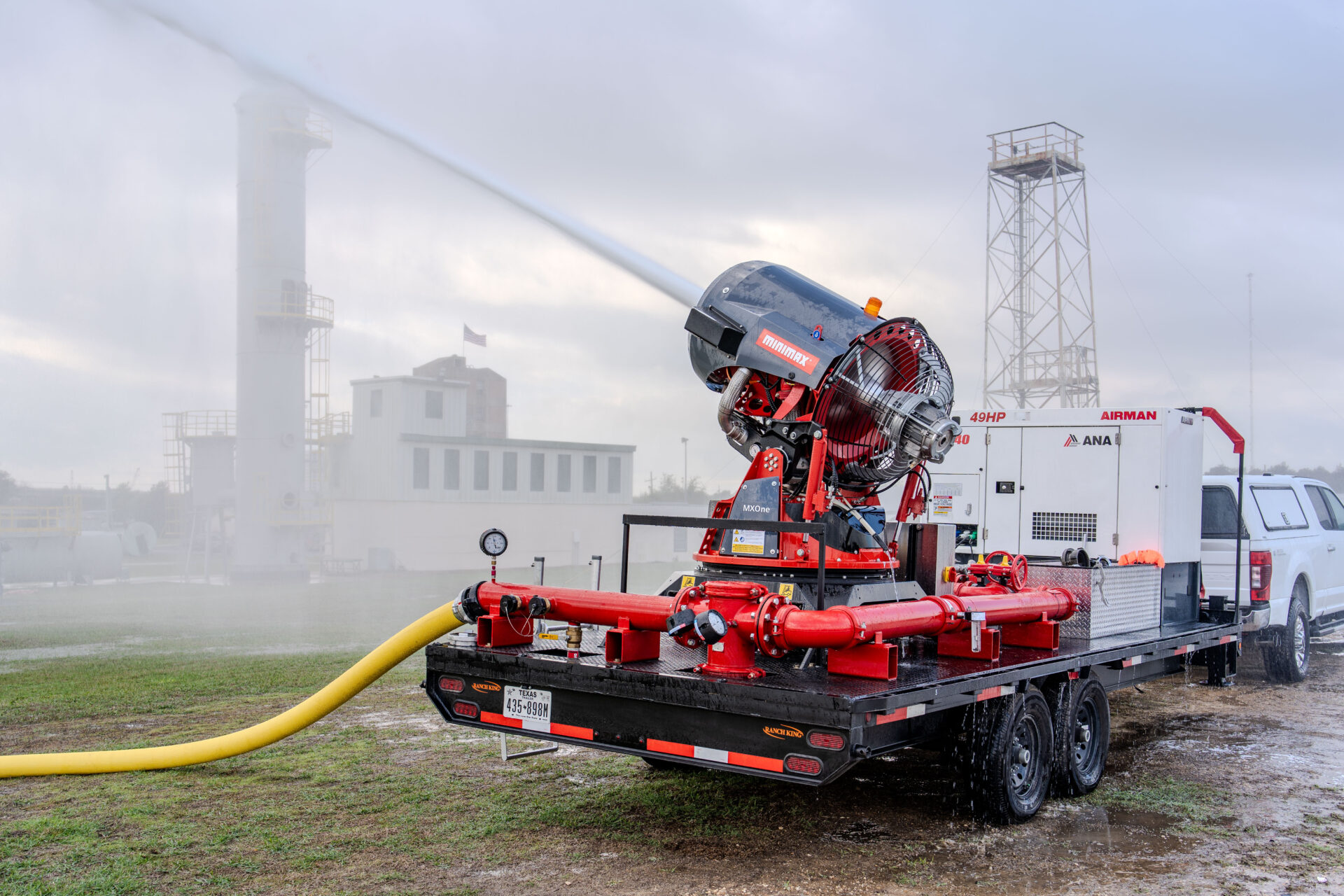

- Mobile on trailer (trailer)
- Mobile on flat rack container with own power and water supply

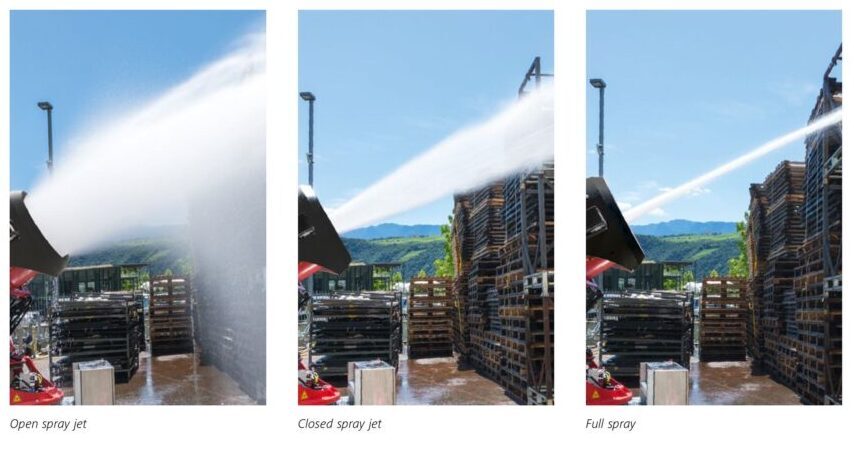

Spray patterns and extinguishing media
Fighting fire with water mist from a long distance is one of the MXOne’s unique strengths. The turbine compensates for the susceptibility of small drops to external influencing factors, like crosswinds or headwinds, by intelligently controlling and switching on the propeller. In addition, the system can be flexibly adapted to almost any challenge from different fire scenarios. MXOne achieves unprecedented versatility of use, as it can be used with town water as well as with salt water or foam concentrate (also fluorine-free), and the extinguishing agent can then be applied in a variety of spray patterns – from fine water mist to full jet.

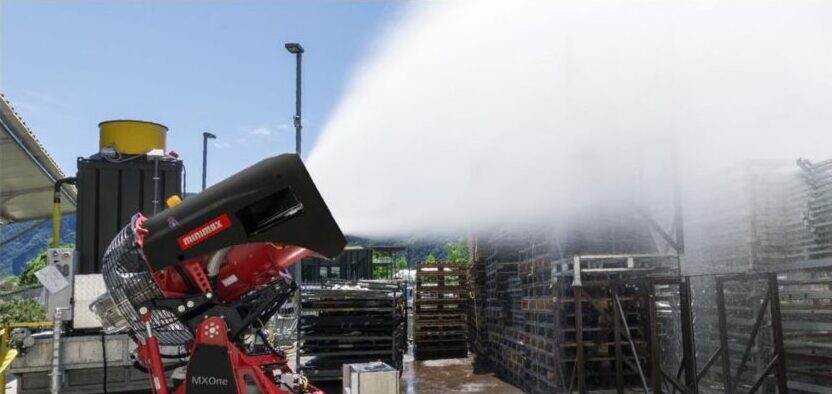

Extinguishing with water mist:
Minimum water use, maximum effectiveness
When extinguishing with water mist, water is atomized under high pressure to create tiny water droplets, and thus a larger reaction surface for absorbing heat. When the water droplets evaporate completely near the flame, their volume is increased by a factor of 1600, so that the oxygen at the source of the fire is temporarily displaced and the resulting smothering effect abruptly suppresses the fire. The downstream water mist creates a highly effective cooling effect, ensuring that the backfire temperature is undercut as quickly as possible and the fire is extinguished. In addition, the water mist protects people and property from the effects of heat. The amount of water used in an extinguishing attack with water mist is considerably less than with full-jet extinguishing, so significantly less water damage can be expected.
- Water has a very high specific heat capacity (~ 4.2 kJ/(kg-K)), meaning it can absorb large amounts of energy compared to other liquids and solids.
- The smaller the water droplets are when dispersed, the larger their surface area and the faster their heating and evaporation occur (energy extraction from the fire). With evaporation, additional inertization takes place through oxygen displacement.

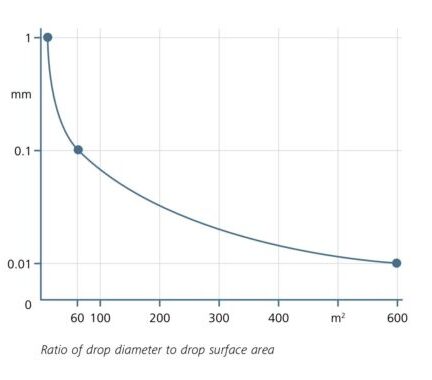

- The total surface area of a water droplet is inversely proportional to its diameter.
- 1l of water sprayed in a drop size of
– 1mm diameter = 6m2
– 0.1mm diameter = 60m2
– 0.01mm diameter = 600m2 - Due to the properties of water mist, effective fire fighting can be realized even with minimal water use.
- The droplet spectrum must be optimally selected so that the fire source can also be reached against the fire thermals.
